Specifications
Example: One port · dedicated circuit · 50 A · 240 V
Change configuration
| Supply | 240 V line-to-line, 60 Hz |
|---|---|
| Branch circuits | One dedicated circuit |
| Manufacturer breaker | 70 A, two-pole |
| Charging output | Up to 12 kW |
| Station conductors | L1, L2 and equipment ground; no station neutral |
Output shown at 240 V follows manufacturer ratings. Actual charging speed also depends on the vehicle and site power limits.

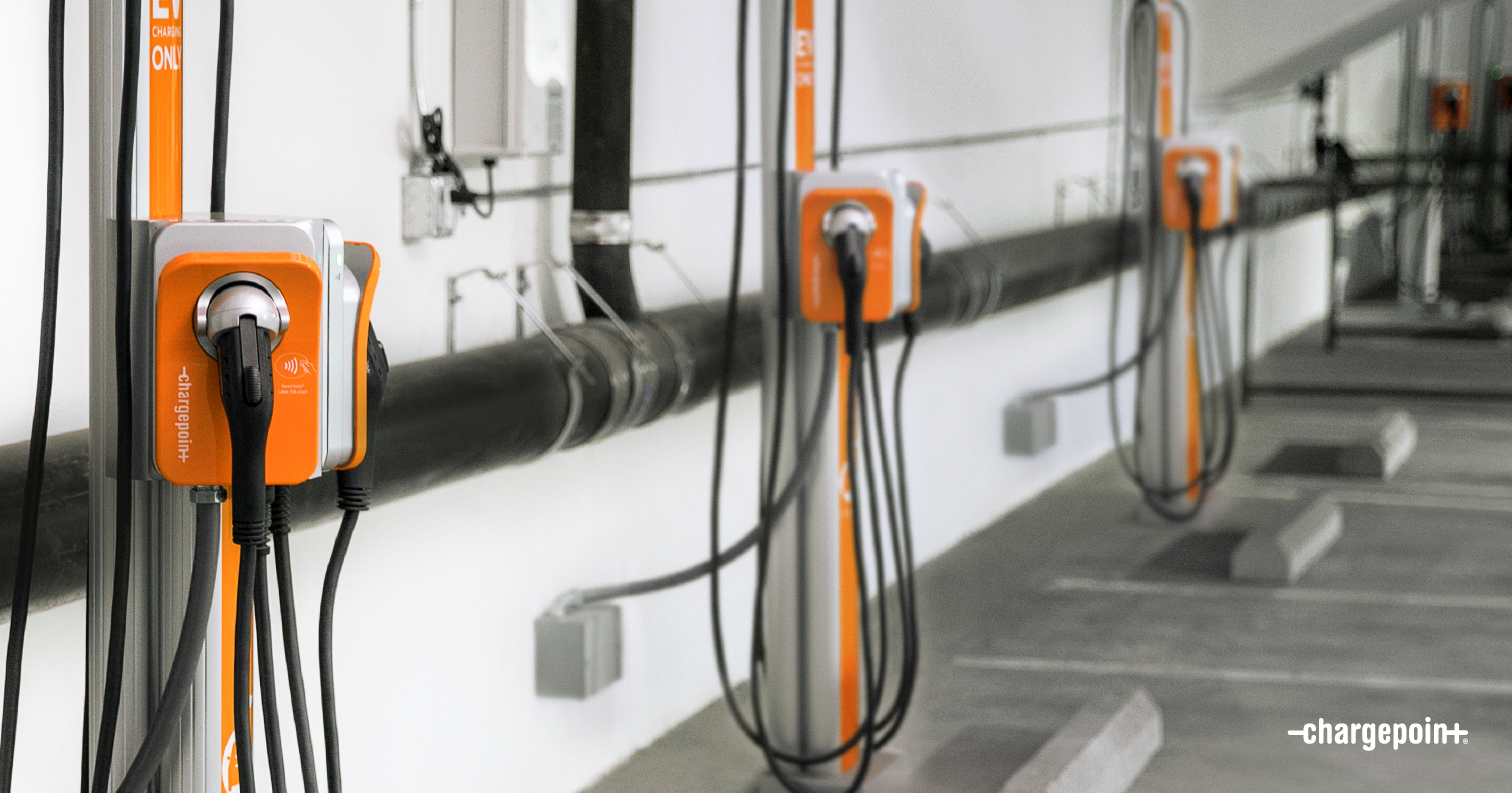

- Mounting
- Wall or pedestal; one charging head per wall mount, one or two per pedestal.
- Charging cable
- 18 or 23 ft, depending on the model.
- Power sharing
- Two heads can share one circuit with the Power Share kit.
- Connectivity
- CPF50-K has built-in cellular. CPF50 models without the -K designation require a separate ChargePoint Gateway.
- Software
- ChargePoint cloud plan and station activation required. The owner can manage driver access.
For pricing or help choosing equipment, send ETP a project inquiry → Plans or photos can be attached.
Foundation, clearance and wiring requirements are covered in the manufacturer guides linked on this page.
